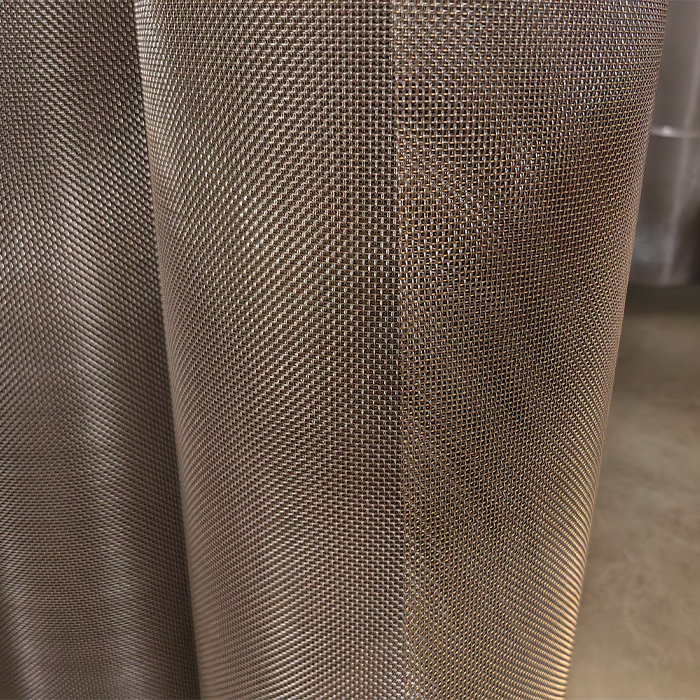

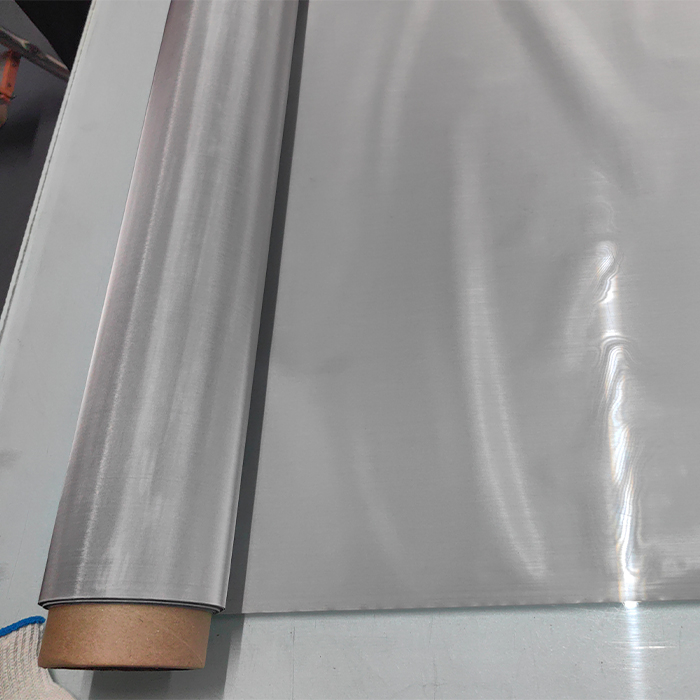

Hastelloy Wire Mesh
Hastelloy wire mesh, a top-tier material made from nickel-chromium-molybdenum alloys, is known for its excellent resistance to high-temperature oxidation and corrosion. Commonly available in Hastelloy C276, C22, and B-2 grades, it is used in various industries, including chemical processing, biopharmaceuticals, and nuclear facilities. The mesh's resilience to harsh chemical environments and high heat makes it a preferred choice for filtration and structural applications.
Hastelloy wire mesh’s fine balance of corrosion resistance and mechanical strength makes it highly durable for long-term industrial use. It provides excellent resistance to wet oxygen, sulfite, and strong oxidizing salts, among other corrosive agents.
Hastelloy wire mesh is made from several grades, each with specific chemical compositions designed for different industrial applications. Below are the key material options and their respective advantages:
Hastelloy C276: Offers exceptional resistance to oxidation, corrosion, and intergranular corrosion in high-temperature applications.
Hastelloy C22: Provides superior resistance to pitting and crevice corrosion, making it ideal for more aggressive chemical environments.
Hastelloy B-2: Known for excellent resistance to hydrochloric acid, it is used in environments involving strong acids.
The chemical compositions of the different Hastelloy grades are as follows:
Type | C | Co | Cr | Fe | Mn | Mo | Ni | P | S | Si | V | W |
H-B | 0.12 | 2.5 | 1.00 | 6.0 | 1.0 | 26.0 - 30.0 | Rem. | 0.01 | - | 0.03 | 0.6 | - |
H-C22 | 0.015 | 2.5 | 14.5 - 20.0 | 2.0 - 6.0 | 0.5 | 12.8 - 14.5 | Rem. | - | 0.02 | 0.08 | 0.35 | - |
H-C276 | 0.02 | 2.5 | 14.5 - 16.5 | 4.0 - 7.0 | 1.0 | 15.0 - 17.0 | Rem. | 0.03 | 0.03 | 0.08 | 0.35 | 3.0 - 4.5 |
Note: Hastelloy grades like C276, C22, and B-2 provide excellent performance for industries requiring superior resistance to corrosion, oxidation, and high-temperature conditions.
| Specification | Details |
|---|---|
| Material | C276, C22, B-2 |
| Weave Pattern | Plain weave, Twill weave, Dutch weave |
| Mesh Size | 1-200 mesh |
| Wire Diameter | Customizable |
| Roll Width | 0.5m – 4m |
| Roll Length | 10m-50m, Customizable |
| Product Form | Roll mesh, Custom-cut, Welded Filter Pipe |
Note: Custom sizes and shapes can be made according to specific project needs.
Hastelloy wire mesh is widely used across several industries that require advanced materials for high-temperature resistance and corrosion protection. Common applications include:
Filtration: Used in air and liquid filtration systems to remove particles and contaminants, especially in highly corrosive environments.
Chemical Processing: Used for equipment and piping that must withstand sulfuric acid, acetic acid, and wet oxygen.
Biopharmaceuticals: Ideal for applications in pharmaceuticals that require highly sterile and contamination-free environments.
Nuclear Power Plants: Provides reliable mesh for use in high-radiation environments and heat exchangers.
Corrosion Resistance: Hastelloy wire mesh is known for outstanding corrosion resistance in challenging environments.
High Temperature Resistance: Perfect for use in high-temperature applications, including reactors and heat exchangers.
Long-term Durability: The material’s strength ensures it can perform in the harshest conditions without degradation.
Versatile Applications: Available in various forms, including woven mesh, filter screens, and custom-cut sizes, making it suitable for numerous industrial needs.
Hastelloy wire mesh is carefully packaged to prevent damage during shipping. Packaging includes:
Wrapped with waterproof paper and plastic bags or bubble wrap.
Outer packaging is either in wooden cases or wooden pallets for added protection.
Modes of Transport:
Air Express: DHL, UPS, FedEx, TNT, EMS, etc.
Sea Shipping: Delivery to the local seaport or FOB to our local seaport for bulk orders.
What is Hastelloy wire mesh used for?
Hastelloy wire mesh is used in industrial applications that require high corrosion resistance and high-temperature stability, such as in chemical processing, nuclear facilities, and biopharmaceutical industries.
What are the most common grades of Hastelloy wire mesh?
The most commonly used grades are Hastelloy C276, Hastelloy C22, and Hastelloy B-2, each offering distinct benefits for different environments.
Can Hastelloy wire mesh be customized?
Yes, Hastelloy wire mesh can be custom-made in various mesh sizes, roll widths, and lengths to suit specific industrial needs.
How is Hastelloy wire mesh shipped?
It is typically shipped by air express or sea freight, depending on your location and urgency. Packaging includes waterproof materials and protective wooden crates.
