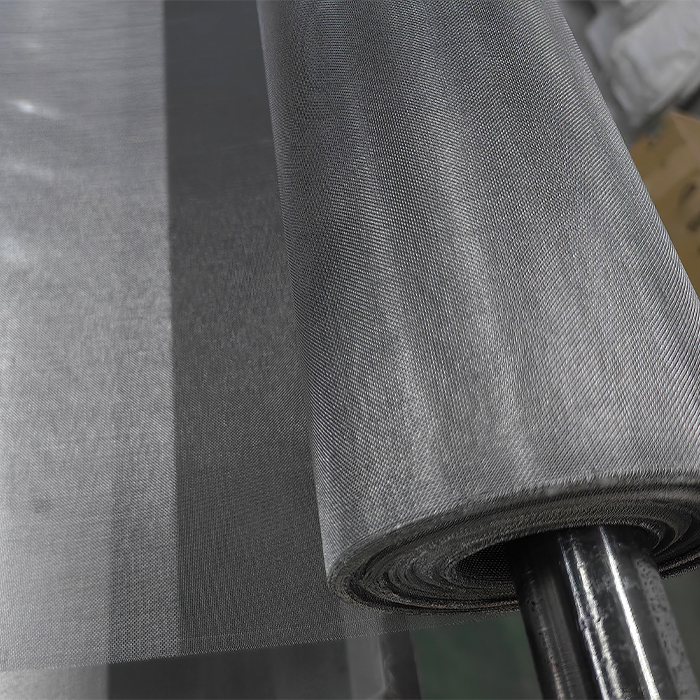

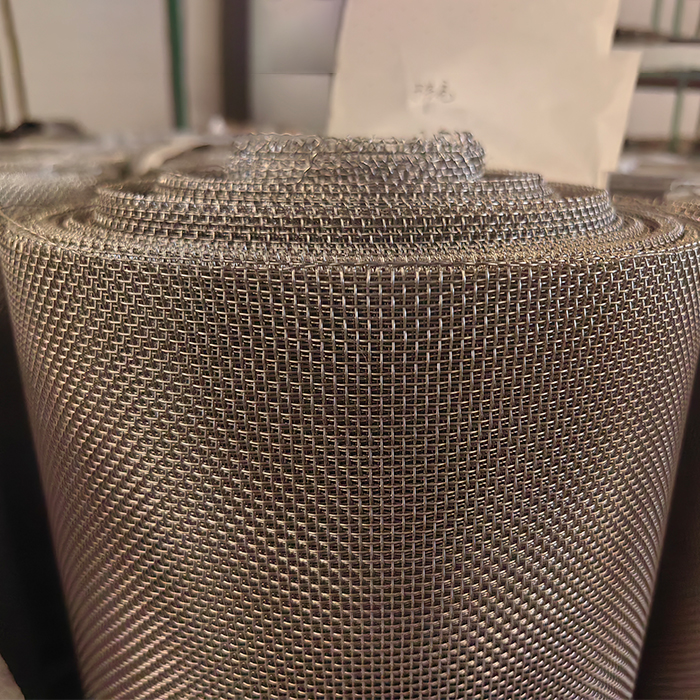

Monel Wire Mesh
Monel Wire Mesh, also referred to as Monel mesh screen, is made from high-strength Ni-Cu alloys such as Monel 400 and Monel K500. This alloy delivers outstanding corrosion resistance in hydrofluoric acid, fluorine gas media, and hot alkaline solutions. It also performs reliably in neutral solutions, seawater, organic solvents, and atmospheric conditions.
As a result, Monel woven wire mesh is widely used in filtration, screening, and separation applications across chemical plants, marine engineering, power systems, and petrochemical industries.
Its stable structure, excellent mechanical strength, and enhanced corrosion resistance make it an ideal material for long-term operation in aggressive working environments.
Material Options
Excellent performance in acidic and alkaline media
High resistance to seawater corrosion
Ideal for chemical processing and marine filtration
Commonly used for Monel 400 wire mesh and Monel 400 woven wire cloth
Similar corrosion resistance to Monel 400 with higher strength
Enhanced hardness due to age-hardening elements such as titanium and aluminum
Suitable for high-pressure and high-load filtration applications
Used for Monel K-500 wire mesh and high-strength filter components
| Material | C | Mn | Si | S | Ni | Cu | Fe |
|---|---|---|---|---|---|---|---|
| Monel 400 | ≤0.30 | ≤2.00 | ≤0.50 | ≤0.024 | ≥63 | 28.0–34.0 | ≤2.5 |
| Material | C | Mn | Si | S | Ni | Cu | Ti | Al | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Monel K500 | ≤0.25 | ≤1.50 | ≤0.50 | ≤0.010 | ≥63 | 27.0–33.0 | 0.35–0.85 | 2.30–3.15 | ≤2.0 |
| Specification Item | Details (with SEO-friendly phrasing) |
|---|---|
| Mesh Count | 1–400 mesh (available for Monel wire mesh specifications) |
| Weaving Types | Plain weave, Twill weave, Dutch weave |
| Common Roll Width | 0.5 m – 4 m |
| Common Roll Length | 10 m – 50 m |
| Product Types | Roll mesh, cut-to-size mesh, welded mesh for filter pipes |
| Samples | Available upon request |
| Material Certificate | Can be supplied |
Monel wire mesh, particularly Monel 400 woven wire mesh and Monel K-500 mesh, is used in environments where conventional stainless steel mesh cannot withstand corrosion or chemical attack. Typical B2B application fields include:
Chemical processing filtration (acidic and alkaline media)
Hydrofluoric acid handling systems
Seawater desalination and marine engineering
Petrochemical refining filtration systems
High-temperature gas filtration and catalyst recovery
Power generation and heat exchange equipment
Aerospace and energy applications requiring corrosion stability
The mesh’s strong corrosion resistance and mechanical durability ensure reliable long-term performance under harsh operating conditions.
Excellent corrosion resistance in acids, alkalis, seawater, fluorine gas, and harsh chemicals
High mechanical strength and temperature stability for continuous industrial filtration
Customizable mesh structure, including various weaving types and mesh counts
Naturally suitable for precision filtration, catalyst support, and separation tasks
Long service life, reducing maintenance frequency for industrial users
Compatible with aggressive and high-pressure working environments
Ideal for customers requiring Monel alloy wire mesh with stable and reliable performance
To ensure product safety during transit, all Monel wire mesh products are:
Wrapped with waterproof paper
Covered with plastic bags or bubble wrap
Packed in wooden cases or on wooden pallets for export shipments
Express air delivery: DHL, UPS, FedEx, TNT, EMS
Regular air shipping to the customer’s local airport
Sea freight to global seaports or FOB shipments from our port
Monel 400 offers excellent general corrosion resistance, while Monel K-500 wire mesh provides higher strength and hardness for demanding or high-pressure filtration environments.
Yes. We provide roll mesh, cut-to-size formats, and welded Monel filter pipe mesh based on customer specifications.
Absolutely. Monel woven wire mesh is one of the best materials for seawater and marine applications due to its high Ni-Cu alloy stability.
Material certificates can be supplied upon request to support quality assurance and project documentation.
