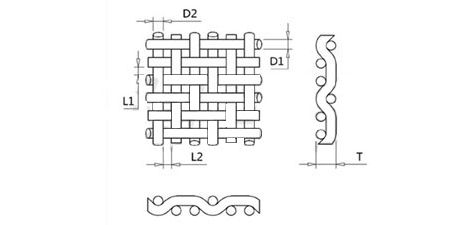

D1 and D2 represent the wire diameter; L1 and L2 represent the mesh; T represents the mesh thickness. The detailed specifications are as follows: | Three-heddle woven stainless steel mesh Three-harness braiding has the following characteristics: 1) Wide mesh, smooth mesh surface, 2) Strong structure, strong tensile strength and good breathability 3) High fluidity, easy to clean Three-hatch woven stainless steel mesh is mainly used for dehydration during papermaking, and is widely used in cultural paper, toilet paper, super calendered printing paper, offset printing, light weight paper and other industries |
24X18 mesh 24X18 mesh three-heddle woven stainless steel mesh, wire diameter 0.35X0.40mm
Radial | latitudinal | Weight kg/square meter | F | ||||
Diameter mm | Mesh mm | Number of stitches | Diameter mm | Mesh mm | Number of stitches | ||
0.35 | 0.70 | 24 | 0.40 | 1.0 | 18 | 1.45 | 97% |
50X30 mesh 50X30 mesh three-heddle woven stainless steel mesh, wire diameter 0.23X0.30mm
Radial | latitudinal | Weight kg/square meter | F | ||||
Diameter mm | Mesh mm | Number of stitches | Diameter mm | Mesh mm | Number of stitches | ||
0.23 | 0.27 | 50 | 0.30 | 0.54 | 30 | 1.33 | 70% |
60X40 mesh 60X40 mesh three-heddle woven stainless steel mesh, wire diameter 0.20X0.24mm
Radial | latitudinal | Weight kg/square meter | F | ||||
Diameter mm | Mesh mm | Number of stitches | Diameter mm | Mesh mm | Number of stitches | ||
0.20 | 0.217 | 60 | 0.24 | 0.405 | 40 | 1.17 | 66% |
80X60 mesh 80X60 mesh three-heddle woven stainless steel mesh, wire diameter 0.14X0.17mm
Radial | latitudinal | Weight kg/square meter | F | ||||
Diameter mm | Mesh mm | Number of stitches | Diameter mm | Mesh mm | Number of stitches | ||
0.14 | 0.17 | 80 | 0.17 | 0.25 | 60 | 0.82 | 34% |
