Plain Weave

Views: 0 Author: Site Editor Publish Time: 2023-10-30 Origin: Site

5.plain weave

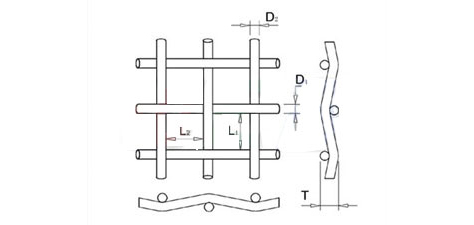

D1 and D2 represent the wire diameter; L1 and L2 represent the mesh; T represents the mesh thickness. The detailed specifications are as follows:

Plain weave stainless steel mesh

Plain weave has the following characteristics:

(1) Square hole, the warp wire diameter and the weft wire diameter are the same

(2) Precise mesh, high fluidity,

(3) High filtration efficiency, low pressure loss, good spatial stability, and large pore area ratio

(4) It has many intertwining points, strong texture, smooth surface, relatively thin and light, good wear resistance, good air permeability, and easy to clean.

Plain woven stainless steel mesh is suitable for petrochemical, chemical fiber, rubber, metallurgy, medicine, food, etc.

3 mesh plain weave stainless steel wire mesh, 3 mesh, wire diameter 0.61-1.0mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
Number of stitches	mm	inch	mm	inch	%	mm²	kg	pound
3	1.00	0.039	7.47	0.294	77.77	55.75	1.50	3.30
3	0.88	0.035	7.59	0.299	80.29	57.56	1.16	2.56
3	0.81	0.032	7.66	0.301	81.78	58.62	0.98	2.17
3	0.71	0.028	7.76	0.305	83.93	60.17	0.76	1.66
3	0.61	0.024	7.86	0.309	86.11	61.73	0.56	1.23

4 mesh plain weave stainless steel wire mesh, 4 mesh, wire diameter 0.51-1.0mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
4	1.00	0.039	5.35	0.211	70.98	28.62	2.00	4.40
4	0.88	0.035	5.47	0.215	74.20	29.92	1.55	3.41
4	0.81	0.032	5.54	0.218	76.12	30.69	1.31	2.89
4	0.71	0.028	5.64	0.222	78.89	31.81	1.01	2.22
4	0.63	0.025	5.72	0.225	81.14	32.72	0.79	1.75
4	0.61	0.024	5.74	0.226	81.71	32.95	0.74	1.64
4	0.56	0.022	5.79	0.228	83.14	33.52	0.63	1.38
4	0.51	0.020	5.84	0.230	84.58	34.11	0.52	1.14

5 mesh plain weave stainless steel wire mesh, 5 mesh, wire diameter 0.51-1.0mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
5	1.00	0.039	4.08	0.161	64.50	16.65	2.50	5.50
5	0.88	0.035	4.20	0.165	68.36	17.64	1.94	4.26
5	0.81	0.032	4.27	0.168	70.65	18.23	1.64	3.61
5	0.71	0.028	4.37	0.172	74.00	19.10	1.26	2.77
5	0.63	0.025	4.45	0.175	76.73	19.80	0.99	2.18
5	0.60	0.024	4.48	0.176	77.8	20.1	0.90	1.98
5	0.58	0.023	4.50	0.177	78.47	20.25	0.84	1.85
5	0.56	0.022	4.52	0.178	79.17	20.43	0.78	1.72
5	0.51	0.020	4.57	0.180	80.93	20.88	0.65	1.43

6 mesh plain weave stainless steel wire mesh, 6 mesh, wire diameter 0.5-0.88mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
6	0.88	0.035	3.35	0.132	62.75	11.24	2.32	5.11
6	0.81	0.032	3.42	0.135	65.39	11.72	1.97	4.33
6	0.71	0.028	3.52	0.139	69.27	12.41	1.51	3.33
6	0.63	0.025	3.60	0.142	72.45	12.98	1.19	2.62
6	0.60	0.024	3.63	0.143	73.6	13.18	1.08	2.38
6	0.58	0.023	3.65	0.144	74.48	13.35	1.01	2.22
6	0.55	0.022	3.68	0.145	75.7	13.54	0.91	2.01
6	0.50	0.020	3.73	0.147	77.77	13.94	0.75	1.65

8 mesh plain weave stainless steel wire mesh, 8 mesh, wire diameter 0.32-0.81mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
8	0.81	0.032	2.37	0.093	55.48	5.59	2.62	5.77
8	0.71	0.028	2.47	0.097	60.28	6.08	2.02	4.44
8	0.63	0.025	2.55	0.100	64.25	6.48	1.59	3.49
8	0.58	0.023	2.60	0.102	66.80	6.73	1.35	2.96
8	0.5	0.020	2.68	0.105	70.98	7.16	1.00	2.20
8	0.45	0.018	2.73	0.107	73.66	7.43	0.81	1.78
8	0.43	0.017	2.75	0.108	74.75	7.54	0.74	1.63
8	0.40	0.016	2.78	0.109	76.4	7.73	0.64	1.41
8	0.38	0.015	2.80	0.110	77.50	7.81	0.58	1.27
8	0.35	0.014	2.83	0.111	79.17	7.98	0.49	1.08
8	0.32	0.013	2.86	0.112	80.86	8.15	0.41	0.90

9 mesh plain weave stainless steel wire mesh, 9 mesh, wire diameter 0.23-0.71mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
9	0.71	0.028	2.11	0.083	56.01	4.46	2.27	4.99
9	0.63	0.025	2.19	0.086	60.34	4.81	1.79	3.93
9	0.58	0.023	2.24	0.088	63.12	5.03	1.51	3.33
9	0.5	0.020	2.32	0.091	67.71	5.39	1.13	2.48
9	0.45	0.018	2.37	0.093	70.65	5.63	0.91	2.00
9	0.43	0.017	2.39	0.094	71.85	5.72	0.83	1.83
9	0.40	0.016	2.42	0.095	73.66	5.87	0.72	1.58
9	0.38	0.015	2.44	0.096	74.88	5.96	0.65	1.43
9	0.37	0.015	2.45	0.097	75.50	6.01	0.62	1.36
9	0.35	0.014	2.47	0.097	76.73	6.11	0.55	1.21
9	0.30	0.012	2.52	0.099	79.87	6.36	0.41	0.89
9	0.28	0.011	2.54	0.100	81.14	6.46	0.35	0.78
9	0.25	0.010	2.57	0.101	83.07	6.62	0.28	0.62
9	0.23	0.009	2.59	0.102	84.36	6.72	0.24	0.52

10 mesh plain weave stainless steel wire mesh 10 mesh, wire diameter 0.30-0.63mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
10	0.63	0.025	1.91	0.075	56.55	3.65	1.98	4.37
10	0.58	0.023	1.96	0.077	59.54	3.84	1.68	3.70
10	0.5	0.020	2.04	0.080	64.50	4.16	1.25	2.75
10	0.45	0.018	2.09	0.082	67.71	4.37	1.01	2.23
10	0.43	0.017	2.11	0.083	69.01	4.45	0.92	2.03
10	0.40	0.016	2.14	0.084	70.98	4.58	0.80	1.76
10	0.38	0.015	2.16	0.085	72.32	4.67	0.72	1.59
10	0.37	0.0146	2.17	0.085	72.9	4.71	0.68	1.49
10	0.35	0.0138	2.19	0.086	74.3	4.80	0.61	1.34
10	0.30	0.012	2.24	0.088	77.8	5.02	0.45	0.99

12 mesh plain weave stainless steel wire mesh 12 mesh, wire diameter 0.21-0.58mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
12	0.58	0.023	1.54	0.060	52.71	2.36	2.02	4.44
12	0.5	0.020	1.62	0.064	58.34	2.61	1.50	3.30
12	0.45	0.018	1.67	0.066	62.00	2.78	1.22	2.67
12	0.43	0.017	1.69	0.066	63.50	2.84	1.11	2.44
12	0.4	0.016	1.72	0.068	65.78	2.95	0.96	2.11
12	0.38	0.015	1.74	0.068	67.32	3.02	0.87	1.91
12	0.35	0.014	1.77	0.070	69.66	3.12	0.74	1.62
12	0.30	0.012	1.82	0.072	73.7	3.31	0.54	1.19
12	0.28	0.011	1.84	0.073	75.3	3.39	0.47	1.03
12	0.25	0.010	1.87	0.073	77.77	3.48	0.38	0.83
12	0.23	0.009	1.89	0.074	79.45	3.56	0.32	0.70
12	0.21	0.008	1.91	0.075	81.14	3.64	0.26	0.58

14 mesh plain weave stainless steel wire mesh 14 mesh, wire diameter 0.58-0.88mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
14	0.58	0.023	1.23	0.049	46.28	1.52	2.35	5.18
14	0.5	0.020	1.31	0.052	52.48	1.73	1.75	3.85
14	0.45	0.018	1.36	0.054	56.55	1.86	1.42	3.12
14	0.43	0.017	1.38	0.054	58.22	1.92	1.29	2.85
14	0.4	0.016	1.41	0.056	60.77	2.00	1.12	2.46
14	0.38	0.015	1.43	0.056	62.50	2.06	1.01	2.22
14	0.35	0.014	1.46	0.058	65.14	2.14	0.86	1.89
14	0.34	0.013	1.47	0.058	66.03	2.17	0.81	1.78
14	0.33	0.013	1.48	0.058	66.93	2.20	0.76	1.68
14	0.30	0.012	1.51	0.060	69.66	2.29	0.63	1.39
14	0.27	0.011	1.54	0.061	72.45	2.38	0.51	1.12
14	0.25	0.010	1.56	0.062	74.34	2.45	0.44	0.96
14	0.23	0.009	1.58	0.062	76.25	2.51	0.37	0.81
14	0.21	0.008	1.60	0.063	78.19	2.57	0.31	0.68
14	0.19	0.007	1.62	0.064	80.15	2.64	0.25	0.56
14	0.17	0.007	1.64	0.065	82.14	2.70	0.20	0.45
14	0.15	0.006	1.66	0.066	84.15	2.77	0.16	0.35

16 mesh plain weave stainless steel wire mesh 16 mesh, wire diameter 0.15-0.50mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
16	0.50	0.020	1.09	0.043	46.93	1.18	2.00	4.40
16	0.45	0.018	1.14	0.045	51.34	1.29	1.62	3.56
16	0.43	0.017	1.16	0.046	53.16	1.34	1.48	3.25
16	0.4	0.016	1.19	0.047	55.96	1.41	1.28	2.82
16	0.38	0.015	1.21	0.048	57.86	1.46	1.16	2.54
16	0.35	0.014	1.24	0.049	60.77	1.53	0.98	2.16
16	0.34	0.013	1.25	0.049	61.75	1.56	0.92	2.03
16	0.33	0.013	1.26	0.050	62.75	1.58	0.87	1.92
16	0.3	0.012	1.29	0.051	65.78	1.66	0.72	1.58
16	0.27	0.011	1.32	0.052	68.88	1.74	0.58	1.28
16	0.25	0.010	1.34	0.053	70.98	1.79	0.50	1.10
16	0.24	0.009	1.35	0.053	72.05	1.82	0.46	1.01
16	0.22	0.009	1.37	0.054	74.20	1.87	0.39	0.85
16	0.19	0.007	1.40	0.055	77.50	1.95	0.29	0.64
16	0.17	0.007	1.42	0.056	79.73	2.01	0.23	0.51
16	0.15	0.006	1.44	0.057	82.00	2.07	0.18	0.40

18 mesh plain weave stainless steel wire mesh 18 mesh, wire diameter 0.15-0.50mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
18	0.5	0.020	0.91	0.036	41.69	0.83	2.25	4.95
18	0.45	0.018	0.96	0.038	46.39	0.92	1.82	4.01
18	0.43	0.017	0.98	0.039	48.34	0.96	1.66	3.66
18	0.4	0.016	1.01	0.040	51.34	1.02	1.44	3.17
18	0.38	0.015	1.03	0.041	53.39	1.06	1.30	2.86
18	0.35	0.014	1.06	0.042	56.55	1.13	1.10	2.43
18	0.34	0.013	1.07	0.042	57.62	1.15	1.04	2.29
18	0.33	0.013	1.08	0.043	58.70	1.17	0.98	2.16
18	0.3	0.012	1.11	0.044	62.00	1.23	0.81	1.78
18	0.27	0.011	1.14	0.045	65.39	1.30	0.66	1.44
18	0.25	0.010	1.16	0.046	67.71	1.35	0.56	1.24
18	0.24	0.009	1.17	0.046	68.88	1.37	0.52	1.14
18	0.22	0.009	1.19	0.047	71.25	1.42	0.44	0.96
18	0.19	0.007	1.22	0.048	74.88	1.49	0.32	0.71
18	0.17	0.007	1.24	0.049	77.36	1.54	0.26	0.57
18	0.15	0.006	1.26	0.050	79.87	1.59	0.20	0.45

20 mesh plain weave stainless steel wire mesh, 20 mesh, wire diameter 0.13-0.50mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
20	0.5	0.020	0.77	0.030	36.76	0.59	2.50	5.50
20	0.45	0.018	0.82	0.032	41.69	0.67	2.03	4.46
20	0.43	0.017	0.84	0.033	43.75	0.71	1.85	4.07
20	0.4	0.016	0.87	0.034	46.93	0.76	1.60	3.52
20	0.38	0.015	0.89	0.035	49.11	0.79	1.44	3.18
20	0.35	0.014	0.92	0.036	52.48	0.85	1.23	2.70
20	0.34	0.013	0.93	0.037	53.62	0.86	1.16	2.54
20	0.33	0.013	0.94	0.037	54.78	0.88	1.09	2.40
20	0.3	0.012	0.97	0.038	58.34	0.94	0.90	1.98
20	0.27	0.011	1.00	0.039	62.00	1.00	0.73	1.60
20	0.25	0.010	1.02	0.040	64.50	1.04	0.63	1.38
20	0.24	0.009	1.03	0.041	65.78	1.06	0.58	1.27
20	0.22	0.009	1.05	0.041	68.36	1.10	0.48	1.06
20	0.19	0.007	1.08	0.043	72.32	1.17	0.36	0.79
20	0.17	0.007	1.10	0.043	75.02	1.21	0.29	0.64
20	0.15	0.006	1.12	0.044	77.77	1.25	0.23	0.50
20	0.13	0.005	1.14	0.045	80.58	1.30	0.17	0.37

22 mesh plain weave stainless steel wire mesh 22 mesh, wire diameter 0.13-0.40mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
22	0.13	0.005	1.02	0.040	78.75	1.05	0.19	0.41
22	0.15	0.006	1.00	0.040	75.70	1.01	0.25	0.54
22	0.17	0.007	0.98	0.039	72.72	0.97	0.32	0.70
22	0.19	0.007	0.96	0.038	69.79	0.93	0.40	0.87
22	0.20	0.008	0.95	0.038	68.36	0.91	0.44	0.97
22	0.25	0.010	0.90	0.036	61.38	0.82	0.69	1.51
22	0.28	0.011	0.87	0.034	57.38	0.76	0.86	1.90
22	0.30	0.012	0.85	0.034	54.78	0.73	0.99	2.18
22	0.32	0.013	0.83	0.033	52.25	0.70	1.13	2.48
22	0.35	0.014	0.80	0.032	48.56	0.65	1.35	2.96
22	0.36	0.014	0.79	0.031	47.36	0.63	1.43	3.14
22	0.40	0.016	0.75	0.030	42.71	0.57	1.76	3.87

24 mesh plain weave stainless steel wire mesh 24 mesh, wire diameter 0.16-0.58mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
24	0.58	0.023	0.48	0.019	20.43	0.23	4.04	8.88
24	0.5	0.020	0.56	0.022	27.83	0.31	3.00	6.60
24	0.45	0.018	0.61	0.024	33.04	0.37	2.43	5.35
24	0.43	0.017	0.63	0.025	35.25	0.39	2.22	4.88
24	0.4	0.016	0.66	0.026	38.69	0.43	1.92	4.22
24	0.38	0.015	0.68	0.027	41.08	0.46	1.73	3.81
24	0.35	0.014	0.71	0.028	44.80	0.50	1.47	3.23
24	0.34	0.013	0.72	0.028	46.07	0.52	1.39	3.05
24	0.33	0.013	0.73	0.029	47.36	0.53	1.31	2.87
24	0.3	0.012	0.76	0.030	51.34	0.58	1.08	2.38
24	0.27	0.011	0.79	0.031	55.48	0.62	0.87	1.92
24	0.25	0.010	0.81	0.032	58.34	0.65	0.75	1.65
24	0.24	0.009	0.82	0.032	59.79	0.67	0.69	1.52
24	0.22	0.009	0.84	0.033	62.75	0.70	0.58	1.28
24	0.21	0.008	0.85	0.033	64.25	0.72	0.53	1.16
24	0.2	0.008	0.86	0.034	65.78	0.74	0.48	1.06
24	0.19	0.007	0.87	0.034	67.32	0.75	0.43	0.95
24	0.17	0.007	0.89	0.035	70.45	0.79	0.35	0.76
24	0.16	0.006	0.90	0.035	72.05	0.81	0.31	0.68

25 mesh plain weave stainless steel mesh 25 mesh, wire diameter 0.15-0.37mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
25	0.15	0.006	0.87	0.034	72.65	0.75	0.28	0.62
25	0.20	0.008	0.82	0.032	64.50	0.67	0.50	1.10
25	0.28	0.011	0.74	0.029	52.48	0.54	0.98	2.16
25	0.37	0.015	0.65	0.025	40.43	0.42	1.71	3.76

26 mesh plain weave stainless steel mesh 26 mesh, wire diameter 0.19-0.34mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
26	0.34	0.013	0.64	0.025	42.51	0.41	1.50	3.31
26	0.32	0.013	0.66	0.026	45.22	0.43	1.33	2.93
26	0.3	0.012	0.68	0.027	48.01	0.46	1.17	2.57
26	0.27	0.011	0.71	0.028	52.36	0.50	0.95	2.08
26	0.25	0.010	0.73	0.029	55.37	0.53	0.81	1.79
26	0.23	0.009	0.75	0.029	58.46	0.56	0.69	1.51
26	0.21	0.008	0.77	0.030	61.63	0.59	0.57	1.26
26	0.19	0.007	0.79	0.031	64.88	0.62	0.47	1.03

27 mesh plain weave stainless steel mesh 27 mesh, wire diameter 0.27-0.30mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
27	0.27	0.011	0.67	0.026	50.84	0.45	0.98	2.17
27	0.30	0.012	0.64	0.025	46.39	0.41	1.22	2.67

28 mesh plain weave stainless steel mesh 28 mesh, wire diameter 0.19-0.35mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
28	0.35	0.014	0.56	0.022	37.72	0.31	1.72	3.77
28	0.34	0.013	0.57	0.022	39.09	0.32	1.62	3.56
28	0.33	0.013	0.58	0.023	40.48	0.33	1.52	3.35
28	0.30	0.012	0.61	0.024	44.80	0.37	1.26	2.77
28	0.27	0.011	0.64	0.025	49.33	0.41	1.02	2.25
28	0.25	0.010	0.66	0.026	52.48	0.43	0.88	1.93
28	0.24	0.009	0.67	0.026	54.09	0.45	0.81	1.77
28	0.22	0.009	0.69	0.027	57.38	0.47	0.68	1.49
28	0.21	0.008	0.70	0.027	59.06	0.49	0.62	1.36
28	0.20	0.008	0.71	0.028	60.77	0.50	0.56	1.23
28	0.19	0.007	0.72	0.028	62.50	0.51	0.51	1.11

30 mesh plain weave stainless steel mesh 30 mesh, wire diameter 0.15-0.30mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
30	0.15	0.006	0.70	0.027	67.71	0.49	0.34	0.74
30	0.16	0.006	0.69	0.027	65.78	0.47	0.38	0.84
30	0.17	0.007	0.68	0.027	63.87	0.46	0.43	0.95
30	0.19	0.007	0.66	0.026	60.15	0.43	0.54	1.19
30	0.20	0.008	0.65	0.025	58.34	0.42	0.60	1.32
30	0.21	0.008	0.64	0.025	56.55	0.41	0.66	1.46
30	0.23	0.009	0.62	0.024	53.05	0.38	0.79	1.75
30	0.24	0.009	0.61	0.024	51.34	0.37	0.86	1.90
30	0.25	0.010	0.60	0.023	49.66	0.36	0.94	2.06
30	0.26	0.010	0.59	0.023	48.01	0.34	1.01	2.23
30	0.27	0.011	0.58	0.023	46.39	0.33	1.09	2.41
30	0.28	0.011	0.57	0.022	44.80	0.32	1.18	2.59
30	0.30	0.012	0.55	0.022	41.69	0.30	1.35	2.97

35 mesh plain weave stainless steel mesh 35 mesh, wire diameter 0.20-0.25mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
35	0.20	0.008	0.53	0.021	52.48	0.28	0.70	1.54
35	0.24	0.009	0.49	0.019	44.80	0.24	1.01	2.22
35	0.25	0.010	0.48	0.019	42.97	0.23	1.09	2.41

36 mesh plain weave stainless steel mesh 36 mesh, wire diameter 0.10-0.25mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
36	0.10	0.004	0.61	0.024	73.66	0.37	0.18	0.40
36	0.11	0.004	0.60	0.023	71.25	0.35	0.22	0.48
36	0.17	0.007	0.54	0.021	57.62	0.29	0.52	1.14
36	0.19	0.007	0.52	0.020	53.39	0.27	0.65	1.43
36	0.20	0.008	0.51	0.020	51.34	0.26	0.72	1.58
36	0.21	0.008	0.50	0.020	49.33	0.25	0.79	1.75
36	0.22	0.009	0.49	0.019	47.36	0.24	0.87	1.92
36	0.25	0.010	0.46	0.018	41.69	0.21	1.13	2.48

40 mesh plain weave stainless steel mesh 40 mesh, wire diameter 0.12-0.27mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
40	0.12	0.005	0.52	0.020	65.78	0.27	0.29	0.63
40	0.13	0.005	0.51	0.020	63.25	0.26	0.34	0.74
40	0.14	0.006	0.50	0.019	60.77	0.25	0.39	0.86
40	0.15	0.006	0.49	0.019	58.34	0.24	0.45	0.99
40	0.17	0.007	0.47	0.018	53.62	0.22	0.58	1.27
40	0.18	0.007	0.46	0.018	51.34	0.21	0.65	1.43
40	0.19	0.007	0.45	0.018	49.11	0.20	0.72	1.59
40	0.20	0.008	0.44	0.017	46.93	0.19	0.80	1.76
40	0.21	0.008	0.43	0.017	44.80	0.18	0.88	1.94
40	0.23	0.009	0.41	0.016	40.68	0.16	1.06	2.33
40	0.25	0.010	0.39	0.015	36.76	0.15	1.25	2.75
40	0.26	0.010	0.38	0.015	34.88	0.14	1.35	2.97
40	0.27	0.011	0.37	0.014	33.04	0.13	1.46	3.21

50 mesh plain weave stainless steel mesh 50 mesh, wire diameter 0.10-0.23mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
50	0.10	0.004	0.41	0.016	64.50	0.17	0.25	0.55
50	0.12	0.005	0.39	0.015	58.34	0.15	0.36	0.79
50	0.13	0.005	0.38	0.015	55.37	0.14	0.42	0.93
50	0.14	0.006	0.37	0.014	52.48	0.14	0.49	1.08
50	0.15	0.006	0.36	0.014	49.66	0.13	0.56	1.24
50	0.16	0.006	0.35	0.014	46.93	0.12	0.64	1.41
50	0.17	0.007	0.34	0.013	44.27	0.11	0.72	1.59
50	0.18	0.007	0.33	0.013	41.69	0.11	0.81	1.78
50	0.19	0.007	0.32	0.013	39.19	0.10	0.90	1.99
50	0.20	0.008	0.31	0.012	36.76	0.09	1.00	2.20
50	0.21	0.008	0.30	0.012	34.41	0.09	1.10	2.43
50	0.22	0.009	0.29	0.011	32.14	0.08	1.21	2.66
50	0.23	0.009	0.28	0.011	29.95	0.08	1.32	2.91

60 mesh plain weave stainless steel mesh 60 mesh, wire diameter 0.09-0.21mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
60	0.09	0.004	0.33	0.013	62.00	0.11	0.24	0.53
60	0.10	0.004	0.32	0.013	58.34	0.10	0.30	0.66
60	0.12	0.005	0.30	0.012	51.34	0.09	0.43	0.95
60	0.13	0.005	0.29	0.012	48.01	0.09	0.51	1.12
60	0.14	0.006	0.28	0.011	44.80	0.08	0.59	1.29
60	0.15	0.006	0.27	0.011	41.69	0.07	0.68	1.49
60	0.16	0.006	0.26	0.010	38.69	0.07	0.77	1.69
60	0.17	0.007	0.25	0.010	35.81	0.06	0.87	1.91
60	0.18	0.007	0.24	0.010	33.04	0.06	0.97	2.14
60	0.19	0.007	0.23	0.009	30.38	0.05	1.08	2.38
60	0.21	0.008	0.21	0.008	25.40	0.05	1.32	2.91

70 mesh plain weave stainless steel mesh 70 mesh, wire diameter 0.12-0.15mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
70	0.12	0.005	0.24	0.010	44.80	0.06	0.50	1.11
70	0.13	0.005	0.23	0.009	41.18	0.05	0.59	1.30
70	0.15	0.006	0.21	0.008	34.41	0.05	0.79	1.73

80 mesh plain weave stainless steel mesh 80 mesh, wire diameter 0.08-0.17mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
80	0.08	0.003	0.24	0.009	55.96	0.06	0.26	0.56
80	0.09	0.004	0.23	0.009	51.34	0.05	0.32	0.71
80	0.10	0.004	0.22	0.009	46.93	0.05	0.40	0.88
80	0.12	0.005	0.20	0.008	38.69	0.04	0.58	1.27
80	0.13	0.005	0.19	0.007	34.88	0.04	0.68	1.49
80	0.14	0.006	0.18	0.007	31.25	0.03	0.78	1.72
80	0.15	0.006	0.17	0.007	27.83	0.03	0.90	1.98
80	0.17	0.007	0.15	0.006	21.58	0.02	1.16	2.54

90 mesh plain weave stainless steel mesh 90 mesh, wire diameter 0.09-0.12mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
90	0.09	0.004	0.19	0.008	46.39	0.04	0.36	0.80
90	0.10	0.004	0.18	0.007	41.69	0.03	0.45	0.99
90	0.11	0.004	0.17	0.007	37.24	0.03	0.54	1.20
90	0.12	0.005	0.16	0.006	33.04	0.03	0.65	1.43

100 mesh plain weave stainless steel mesh 100 mesh, wire diameter 0.06-0.12mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
100	0.06	0.002	0.19	0.008	58.34	0.04	0.18	0.40
100	0.07	0.003	0.18	0.007	52.48	0.03	0.25	0.54
100	0.08	0.003	0.17	0.007	46.93	0.03	0.32	0.70
100	0.09	0.004	0.16	0.006	41.69	0.03	0.41	0.89
100	0.10	0.004	0.15	0.006	36.76	0.02	0.50	1.10
100	0.11	0.004	0.14	0.006	32.14	0.02	0.61	1.33
100	0.12	0.005	0.13	0.005	27.83	0.02	0.72	1.58

110 mesh plain weave stainless steel mesh 110 mesh, wire diameter 0.07-0.10mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
110	0.07	0.003	0.16	0.006	48.56	0.03	0.27	0.59
110	0.08	0.003	0.15	0.006	42.71	0.02	0.35	0.77
110	0.09	0.004	0.14	0.006	37.24	0.02	0.45	0.98
110	0.10	0.004	0.13	0.005	32.14	0.02	0.55	1.21

120 mesh plain weave stainless steel mesh 120 mesh, wire diameter 0.06-0.10mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
120	0.06	0.002	0.15	0.006	51.34	0.02	0.22	0.48
120	0.07	0.003	0.14	0.006	44.80	0.02	0.29	0.65
120	0.08	0.003	0.13	0.005	38.69	0.02	0.38	0.84
120	0.09	0.004	0.12	0.005	33.04	0.01	0.49	1.07
120	0.10	0.004	0.11	0.004	27.83	0.01	0.60	1.32

140 mesh plain weave stainless steel mesh 140 mesh, wire diameter 0.06-0.08mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
140	0.06	0.002	0.12	0.005	44.80	0.01	0.25	0.55
140	0.07	0.003	0.11	0.004	37.72	0.01	0.34	0.75
140	0.08	0.003	0.10	0.004	31.25	0.01	0.45	0.99

145 mesh plain weave stainless steel mesh 145 mesh, wire diameter 0.06-0.07mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
145	0.06	0.002	0.12	0.005	47.06	0.01	0.22	0.48
145	0.07	0.003	0.11	0.004	39.56	0.01	0.31	0.67

150 mesh plain weave stainless steel mesh 150 mesh, wire diameter 0.05-0.08mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
150	0.05	0.002	0.12	0.005	49.66	0.01	0.19	0.41
150	0.06	0.002	0.11	0.004	41.69	0.01	0.27	0.59
150	0.07	0.003	0.10	0.004	34.41	0.01	0.37	0.81
150	0.08	0.003	0.09	0.004	27.83	0.01	0.48	1.06

160 mesh plain weave stainless steel mesh 160 mesh, wire diameter 0.04-0.08mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
160	0.04	0.001	0.12	0.005	60.77	0.02	0.10	0.22
160	0.05	0.002	0.11	0.004	51.34	0.01	0.16	0.36
160	0.06	0.002	0.10	0.004	38.69	0.01	0.29	0.63
160	0.07	0.003	0.09	0.003	31.25	0.01	0.39	0.86
160	0.08	0.003	0.08	0.003	24.61	0.01	0.51	1.13

170 mesh plain weave stainless steel mesh 170 mesh, wire diameter 0.05-0.06mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
170	0.05	0.002	0.10	0.004	44.27	0.01	0.21	0.47
170	0.06	0.002	0.09	0.004	35.81	0.01	0.31	0.67

180 mesh plain weave stainless steel mesh 180 mesh, wire diameter 0.03-0.06mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
180	0.03	0.001	0.11	0.004	62.00	0.01	0.08	0.18
180	0.04	0.002	0.10	0.004	51.34	0.01	0.14	0.32
180	0.05	0.002	0.09	0.004	41.69	0.01	0.23	0.50
180	0.06	0.002	0.08	0.003	33.04	0.01	0.32	0.71

200 mesh plain weave stainless steel mesh 200 mesh, wire diameter 0.05-0.06mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
200	0.05	0.002	0.08	0.003	36.76	0.01	0.25	0.55
200	0.06	0.002	0.07	0.003	27.83	0.00	0.36	0.79

225 mesh plain woven stainless steel mesh 225 mesh, wire diameter 0.05mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
225	0.05	0.002	0.06	0.002	31.03	0.00	0.28	0.62

240 mesh plain woven stainless steel mesh 240 mesh, wire diameter 0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
240	0.04	0.002	0.07	0.003	38.69	0.00	0.19	0.42

250 mesh plain weave stainless steel mesh 250 mesh, wire diameter 0.03-0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
250	0.03	0.001	0.07	0.003	49.66	0.01	0.11	0.25
250	0.04	0.002	0.06	0.002	36.76	0.00	0.20	0.44

280 mesh plain woven stainless steel mesh 280 mesh, wire diameter 0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
280	0.04	0.002	0.05	0.002	31.25	0.00	0.22	0.49

300 mesh plain weave stainless steel mesh 300 mesh, wire diameter 0.03-0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
300	0.03	0.001	0.05	0.002	41.69	0.00	0.14	0.30
300	0.04	0.002	0.04	0.002	27.83	0.00	0.24	0.53
