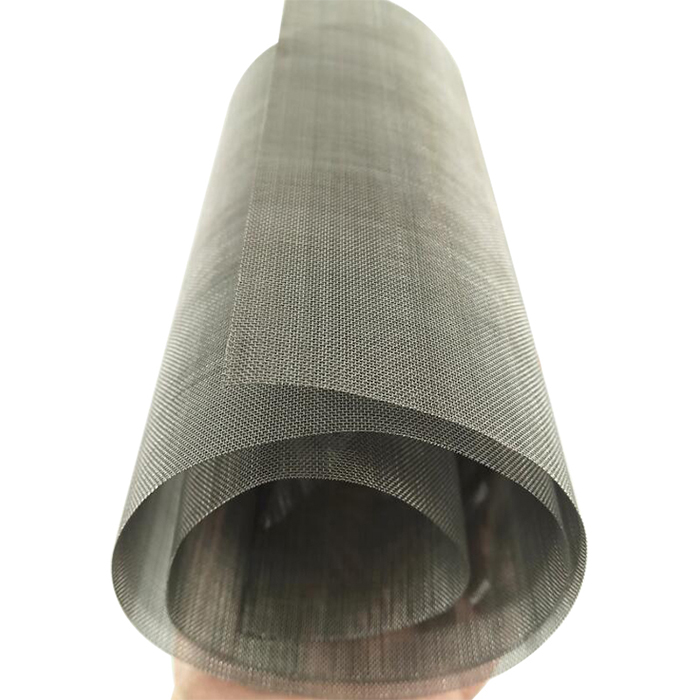

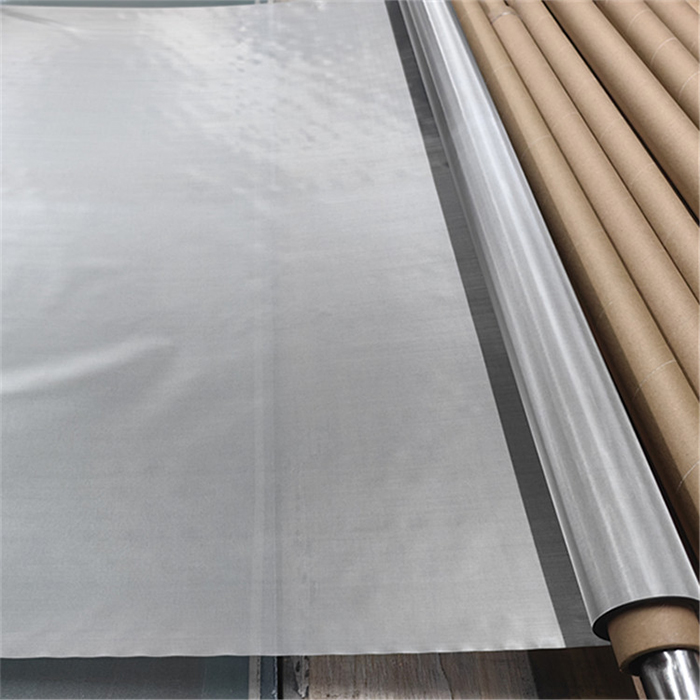

Pure nickel wire mesh
Nickel mesh has excellent corrosion resistance characteristics, mainly used for screening, gas filtration, liquid filtration, and other media separation under acidic and alkaline environmental conditions. As a pure nickel woven wire mesh, it provides stable chemical performance and reliable mechanical strength in demanding industrial environments.
Pure nickel wire mesh is widely used in hydrogen production, petroleum processing, chemical industry, chemical fiber, rubber and tire manufacturing, metallurgy, pharmaceutical, and food processing industries. In addition, due to its good electrical conductivity and material stability, nickel wire mesh can also be used in electronics applications, battery electrodes, and fuel cells.
Weaving Type:
Plain weave, Twill weave, and Dutch weave, available to meet different filtration accuracy and strength requirements.
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | Fe | Impurity Sum |
Min | Max | ||||||||
N2 | 99.98 | .001 | .003 | .002 | .005 | .003 | .001 | .007 | .02 |
N4 | 99.9 | .015 | .03 | .002 | .01 | .01 | .001 | .04 | .1 |
N6 | 99.5 | .06 | .10 | .05 | .10 | .10 | .005 | .10 | .5 |
N8 | 99.0 | .15 | .15 | .20 | .20 | .10 | .015 | .30 | 1.0 |
Material Grades and Composition:
Nickel wire mesh can be manufactured using Ni200 or Ni201 (N2, N4, N6, N8), with detailed chemical composition available as listed. Material certificates can be supplied upon request.
Specifications and Supply Form:
Mesh count ranges from 1 to 400 mesh. Common roll width is 0.5–4 m, and common roll length is 10–50 m. Products can be supplied in rolls, cut-to-size sheets, or welded into filter pipes according to customer requirements. Customized specifications for project orders are also available.
Packaging and Delivery:
Each roll is wrapped with waterproof paper and plastic film, then packed in wooden cases or pallets. Global shipping via air or sea is available, supporting bulk orders and project-based deliveries.
Why Choose Us :
Experienced team and professional pre-sales support
Strict quality control and reliable after-sales service
Advanced machinery and fast production lead time
Competitive pricing and project-based solutions
As a trusted pure nickel wire mesh manufacturer and supplier, we welcome inquiries for quotes, bulk orders, and custom specifications
FAQ
Q2: Which industries use pure nickel wire mesh?
A: Hydrogen, petroleum, chemical, chemical fiber, rubber, tire, metallurgy, pharmaceutical, food processing, electronics, and battery industries.
Q2: Can mesh be customized?
A: Yes, mesh count, roll width/length, cut-to-size sheets, and welded filter pipes can be tailored for your project.
Q3: What grades are available?
A: Ni200 and Ni201 (N2, N4, N6, N8), with material certificates upon request.
Q4: How is it shipped?
A: Each roll is wrapped with waterproof paper and plastic film, then packed in wooden cases or pallets. Air and sea shipping are available for global delivery.
Q5: Do you handle bulk orders or project quotes?
A: Yes, we provide bulk supply, project-based solutions, and pricing support. Request a quote for more information.
