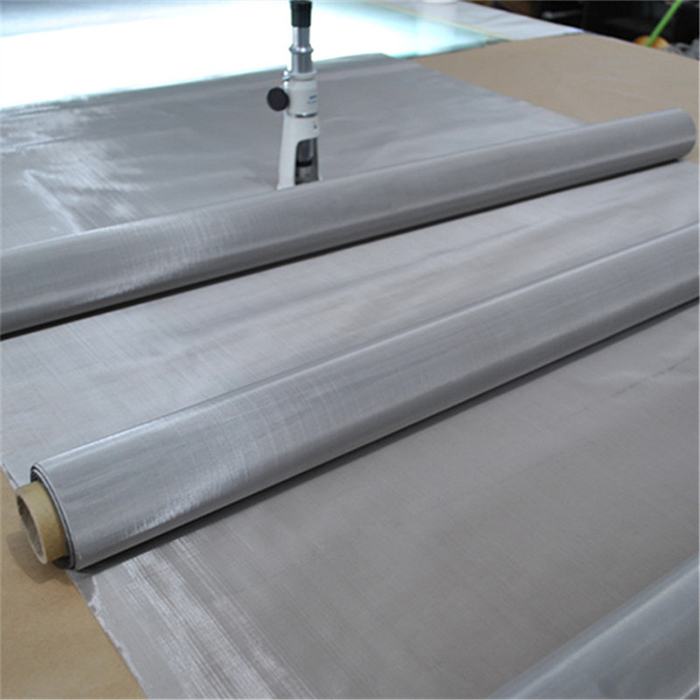

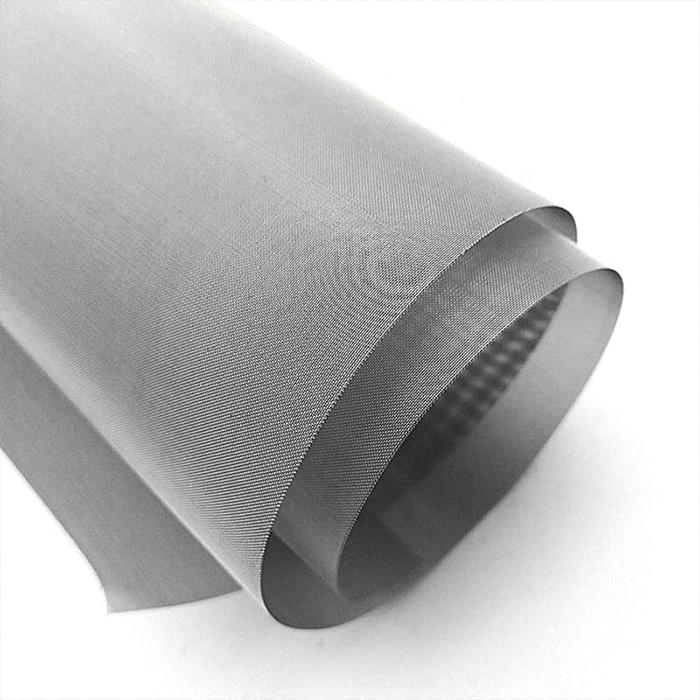

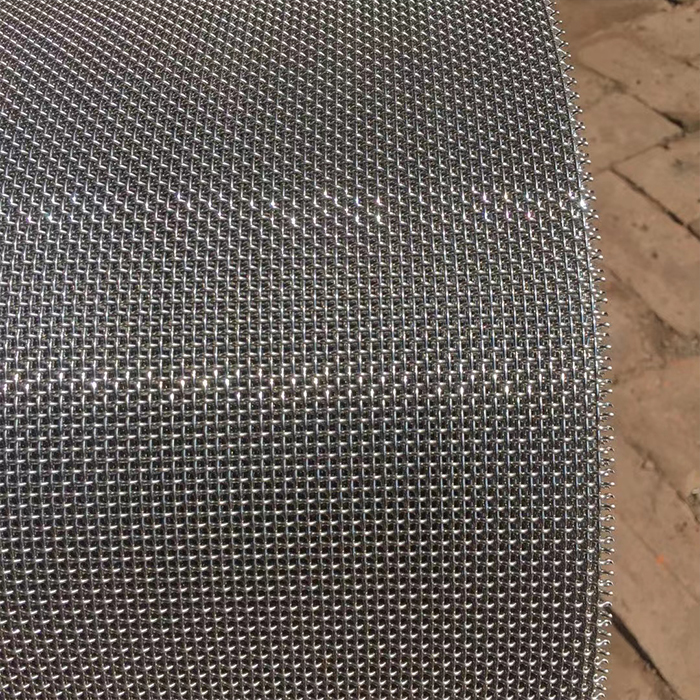

Inconel Wire Mesh
Inconel Wire Mesh is manufactured from nickel-chromium-iron alloys known for their outstanding resistance to oxidation, carburization, and high-temperature corrosion. As a widely used high-temperature alloy mesh, it provides stable mechanical performance during continuous exposure to extreme conditions—making it suitable for demanding filtration, screening, and separation applications.
This mesh is commonly used across military equipment, petrochemical processing, industrial furnace components, aerospace engine systems, pharmaceutical manufacturing, and chemical plants. The combination of heat resistance, mechanical strength, and corrosion stability ensures long-term performance where conventional stainless steel mesh cannot withstand harsh working environments.
Material Options
We supply multiple Inconel grades to meet diverse operational conditions. Each grade offers unique advantages in corrosion resistance, high-temperature stability, and mechanical strength. All materials support custom mesh sizes and industrial-grade filtration requirements.
Inconel 600 (N06600) — Excellent resistance to high-temperature oxidation and chloride-ion stress corrosion.
Inconel 601 (N06601) — Superb oxidation resistance and structural stability for long-term heat exposure.
Inconel 625 (N06625) — High strength and outstanding corrosion resistance in seawater, chemical media, and extreme temperatures.
Inconel 718 (N07718) — Superior mechanical strength and fatigue resistance, ideal for demanding aerospace and turbine environments.
Inconel X-750 (N07750) — Excellent creep resistance and stress-rupture properties for high-temperature springs and fasteners.
Grade | C | Cr | Cu | Fe | Mn | Ni | S | Si | ||||||||
Inconel 600 | 0.15 | 14 - 17 | 0.5 | 6.0-10.0 | 1 | 72 | 0.015 | 0.5 | ||||||||
Grade | C | Cr | Cu | Fe | Mn | Ni | S | Si | Al | |||||||
Inconel 601 | 0.1 | 21 - 25 | 1 | Rem. | 1 | 58 - 63 | 0.015 | 0.5 | 1.0 - 1.7 | |||||||
Grade | C | Cr | Fe | Mn | Ni | S | Si | Al | Cb | Mo | P | Ti | ||||
Inconel 625 | 0.1 | 20 - 23 | 5 | 0.5 | Rem. | 0.15 | 0.5 | 0.4 | 3.15 - 4.15 | 8.0-10.0 | 0.015 | 0.4 | ||||
Grade | C | Cr | Cu | Fe | Mn | Ni | S | Si | Al | Cb | Mo | P | Ti | B | C | Co |
Inconel 718 | 0.08 | 17 - 21 | 0.3 | Rem. | 0.035 | 50 - 55 | 0.015 | 0.35 | 0.2 - 0.8 | 4.75 - 5.50 | 2.8 - 3.3 | 0.015 | 0.65 - 1.15 | 0.006 | 0.08 | 1 |
| Specification Item | Details |
|---|---|
| Mesh Count | 2–200 mesh (customizable for Inconel wire mesh) |
| Weaving Type | Plain weave, Twill weave |
| Roll Width | 0.5 m – 4 m |
| Roll Length | 10 m – 50 m |
| Product Types | Roll mesh, cut-to-size mesh, welded mesh for filter pipes |
| Samples | Available upon request |
| Material Certificate | Can be provided |
Inconel woven wire mesh is widely used in:
Petrochemical filtration：high-temperature cracking, catalyst recovery, chemical reactors
Aerospace systems：turbine components, engine heat-resistant filtration
Industrial furnace equipment：heat-treating baskets, furnace linings, protective screens
Military and defense equipment：high-strength mesh for extreme conditions
Pharmaceutical and chemical processing：corrosion-resistant filtration systems
Power generation：gas turbine filtration, heat exchanger protection
High-temperature gas filtration：oxidizing and corrosive gas environments
Its stability in thermal cycling makes it suitable for continuous long-term operation where stainless steel fails.
Exceptional resistance to oxidation and carburization at high temperatures
Strong mechanical integrity under thermal cycling
Excellent corrosion resistance in acids, alkalis, and corrosive gas environments
Suitable for high-temperature filtration and industrial furnace applications
Supports customized mesh count, size, and weaving structure
Durable alloy ensures long service life with minimal maintenance
Wrapped with waterproof paper
Layered with plastic bags or bubble wrap
Outer packaging: wooden pallets or wooden cases for export
Air express：DHL, UPS, FedEx, TNT, EMS
Regular air transport：to destination airport
Sea freight：to global seaports or FOB from our port
We supply Inconel 600, 601, 625, 718, and X-750 mesh depending on temperature, corrosion medium, and strength requirements.
Yes. Inconel wire mesh offers excellent oxidation and thermal stability, especially in furnace and chemical processing environments.
Yes, we support custom mesh counts, roll sizes, and cut-to-size formats for different filtration requirements.
Yes. Material certificates can be provided to support engineering documentation and quality traceability.
