Twill Weave

Views: 0 Author: Site Editor Publish Time: 2023-10-30 Origin: Site

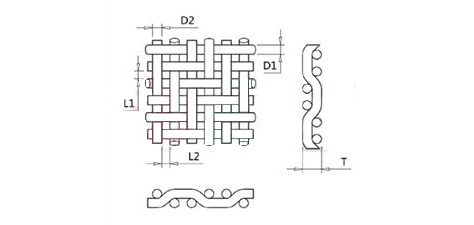

8.twill weave

D1 and D2 represent the wire diameter; L1 and L2 represent the mesh; T represents the mesh thickness. The detailed specifications are as follows:

Twill weave stainless steel mesh

Twill weave has the following characteristics:

1) Square hole (with square hole, wide mesh or long mesh)

2) The warp wire diameter and the weft wire diameter are the same

3) Precise mesh and solid structure

4) Low hardness, easy to clean

Twill woven stainless steel mesh is mainly used for gas, liquid filtration and other screening purposes, and is used in aerospace, petroleum, chemical and other industries

20 mesh twill weave stainless steel mesh 20 mesh, wire diameter 0.71-0.24mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
20	0.71	0.028	0.56	0.022	19.44	0.31	5.04	11.09
20	0.63	0.025	0.64	0.025	25.40	0.41	3.97	8.73
20	0.58	0.023	0.69	0.027	29.52	0.48	3.36	7.40
20	0.5	0.020	0.77	0.030	36.76	0.59	2.50	5.50
20	0.45	0.018	0.82	0.032	41.69	0.67	2.03	4.46
20	0.43	0.017	0.84	0.033	43.75	0.71	1.85	4.07
20	0.4	0.016	0.87	0.034	46.93	0.76	1.60	3.52
20	0.38	0.015	0.89	0.035	49.11	0.79	1.44	3.18
20	0.35	0.014	0.92	0.036	52.48	0.85	1.23	2.70
20	0.34	0.013	0.93	0.037	53.62	0.86	1.16	2.54
20	0.33	0.013	0.94	0.037	54.78	0.88	1.09	2.40
20	0.3	0.012	0.97	0.038	58.34	0.94	0.90	1.98
20	0.27	0.011	1.00	0.039	62.00	1.00	0.73	1.60
20	0.25	0.010	1.02	0.040	64.50	1.04	0.63	1.38
20	0.24	0.009	1.03	0.041	65.78	1.06	0.58	1.27

24 mesh twill weave stainless steel mesh 24 mesh, wire diameter 0.58-0.30mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
24	0.58	0.023	0.48	0.019	20.43	0.23	4.04	8.88
24	0.50	0.020	0.56	0.022	27.83	0.31	3.00	6.60
24	0.45	0.018	0.61	0.024	33.04	0.37	2.43	5.35
24	0.43	0.017	0.63	0.025	35.25	0.39	2.22	4.88
24	0.4	0.016	0.66	0.026	38.69	0.43	1.92	4.22
24	0.38	0.015	0.68	0.027	41.08	0.46	1.73	3.81
24	0.35	0.014	0.71	0.028	44.80	0.50	1.47	3.23
24	0.34	0.013	0.72	0.028	46.07	0.52	1.39	3.05
24	0.33	0.013	0.73	0.029	47.36	0.53	1.31	2.87
24	0.30	0.012	0.76	0.030	51.34	0.58	1.08	2.38

26 mesh twill weave stainless steel mesh 26 mesh, wire diameter 0.45-0.30mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
26	0.45	0.018	0.53	0.021	29.09	0.28	2.63	5.79
26	0.40	0.016	0.58	0.023	34.88	0.33	2.08	4.58
26	0.34	0.013	0.64	0.025	42.51	0.41	1.50	3.31
26	0.32	0.013	0.66	0.026	45.22	0.43	1.33	2.93
26	0.30	0.012	0.68	0.027	48.01	0.46	1.17	2.57

28 mesh twill weave stainless steel mesh 28 mesh, wire diameter 0.45-0.25mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
28	0.45	0.018	0.46	0.018	25.40	0.21	2.84	6.24
28	0.43	0.017	0.48	0.019	27.67	0.23	2.59	5.69
28	0.40	0.016	0.51	0.020	31.25	0.26	2.24	4.93
28	0.38	0.015	0.53	0.021	33.77	0.28	2.02	4.45
28	0.35	0.014	0.56	0.022	37.72	0.31	1.72	3.77
28	0.34	0.013	0.57	0.022	39.09	0.32	1.62	3.56
28	0.33	0.013	0.58	0.023	40.48	0.33	1.52	3.35
28	0.30	0.012	0.61	0.024	44.80	0.37	1.26	2.77
28	0.27	0.011	0.64	0.025	49.33	0.41	1.02	2.25
28	0.25	0.010	0.66	0.026	52.48	0.43	0.88	1.93

30 mesh twill weave stainless steel mesh 30 mesh, wire diameter 0.40-0.30mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
30	0.30	0.012	0.55	0.022	41.69	0.30	1.35	2.97
30	0.35	0.014	0.50	0.020	34.41	0.25	1.84	4.04
30	0.40	0.016	0.45	0.018	27.83	0.20	2.40	5.28

40 mesh twill weave stainless steel mesh 40 mesh, wire diameter 0.34-0.20mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
40	0.20	0.008	0.44	0.017	46.93	0.19	0.80	1.76
40	0.21	0.008	0.43	0.017	44.80	0.18	0.88	1.94
40	0.23	0.009	0.41	0.016	40.68	0.16	1.06	2.33
40	0.25	0.010	0.39	0.015	36.76	0.15	1.25	2.75
40	0.26	0.010	0.38	0.015	34.88	0.14	1.35	2.97
40	0.27	0.011	0.37	0.014	33.04	0.13	1.46	3.21
40	0.30	0.012	0.34	0.013	27.83	0.11	1.80	3.96
40	0.33	0.013	0.31	0.012	23.07	0.09	2.18	4.79
40	0.34	0.013	0.30	0.012	21.58	0.09	2.31	5.09

50 mesh twill weave stainless steel mesh 50 mesh, wire diameter 0.30-0.22mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
50	0.30	0.012	0.21	0.008	16.76	0.04	2.26	4.96
50	0.27	0.011	0.24	0.009	21.95	0.06	1.83	4.02
50	0.25	0.010	0.26	0.010	25.79	0.07	1.57	3.45
50	0.24	0.009	0.27	0.011	27.83	0.07	1.44	3.18
50	0.22	0.009	0.29	0.011	32.14	0.08	1.21	2.67

60 mesh twill weave stainless steel mesh 60 mesh, wire diameter 0.27-0.12mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
60	0.12	0.005	0.30	0.012	51.34	0.09	0.43	0.95
60	0.13	0.005	0.29	0.012	48.01	0.09	0.51	1.12
60	0.14	0.006	0.28	0.011	44.80	0.08	0.59	1.29
60	0.15	0.006	0.27	0.011	41.69	0.07	0.68	1.49
60	0.16	0.006	0.26	0.010	38.69	0.07	0.77	1.69
60	0.17	0.007	0.25	0.010	35.81	0.06	0.87	1.91
60	0.18	0.007	0.24	0.010	33.04	0.06	0.97	2.14
60	0.19	0.007	0.23	0.009	30.38	0.05	1.08	2.38
60	0.21	0.008	0.21	0.008	25.40	0.05	1.32	2.91
60	0.24	0.009	0.18	0.007	18.76	0.03	1.73	3.80
60	0.25	0.010	0.17	0.007	16.76	0.03	1.88	4.13
60	0.27	0.011	0.15	0.006	13.12	0.02	2.19	4.81

70 mesh twill weave stainless steel mesh 70 mesh, wire diameter 0.17-0.15mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
70	0.17	0.007	0.19	0.008	28.25	0.04	1.01	2.23
70	0.15	0.006	0.21	0.008	34.41	0.05	0.79	1.73

80 mesh twill weave stainless steel mesh 80 mesh, wire diameter 0.17-0.10mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
80	0.10	0.004	0.22	0.009	46.93	0.05	0.40	0.88
80	0.12	0.005	0.20	0.008	38.69	0.04	0.58	1.27
80	0.13	0.005	0.19	0.007	34.88	0.04	0.68	1.49
80	0.14	0.006	0.18	0.007	31.25	0.03	0.78	1.72
80	0.15	0.006	0.17	0.007	27.83	0.03	0.90	1.98
80	0.17	0.007	0.15	0.006	21.58	0.02	1.16	2.54

100 mesh twill weave stainless steel mesh 100 mesh, wire diameter 0.12-0.10mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
100	0.10	0.004	0.15	0.006	36.76	0.02	0.50	1.10
100	0.11	0.004	0.14	0.006	32.14	0.02	0.61	1.33
100	0.12	0.005	0.13	0.005	27.83	0.02	0.72	1.58

120 mesh twill weave stainless steel mesh 120 mesh, wire diameter 0.10-0.09mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
120	0.10	0.004	0.11	0.004	27.83	0.01	0.60	1.32
120	0.09	0.004	0.12	0.005	33.04	0.01	0.49	1.07

150 mesh twill weave stainless steel mesh 150 mesh, wire diameter 0.06-0.05mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
150	0.05	0.002	0.12	0.005	49.66	0.01	0.19	0.41
150	0.06	0.002	0.11	0.004	41.69	0.01	0.27	0.59

180 mesh twill weave stainless steel mesh 180 mesh, wire diameter 0.06-0.05mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
180	0.05	0.002	0.09	0.004	41.69	0.01	0.23	0.50
180	0.06	0.002	0.08	0.003	33.04	0.01	0.32	0.71

200 mesh twill weave stainless steel mesh 200 mesh, wire diameter 0.06-0.05mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
200	0.05	0.002	0.08	0.003	36.76	0.01	0.25	0.55
200	0.06	0.002	0.07	0.003	27.83	0.00	0.36	0.79

210 mesh twill weave stainless steel mesh 210 mesh, wire diameter 0.05mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
210	0.05	0.002	0.07	0.003	34.41	0.01	0.26	0.58

230 mesh twill weave stainless steel mesh 230 mesh, wire diameter 0.05mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
230	0.05	0.002	0.06	0.002	29.95	0.00	0.29	0.63

250 mesh twill weave stainless steel mesh 250 mesh, wire diameter 0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
250	0.04	0.002	0.06	0.002	36.76	0.00	0.20	0.44

265 mesh twill weave stainless steel mesh 265 mesh, wire diameter 0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
265	0.04	0.002	0.06	0.002	33.95	0.00	0.21	0.47

270 mesh twill weave stainless steel mesh 270 mesh, wire diameter 0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
270	0.04	0.002	0.05	0.002	33.04	0.00	0.22	0.48

280 mesh twill weave stainless steel mesh 280 mesh, wire diameter 0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
280	0.04	0.002	0.05	0.002	31.25	0.00	0.22	0.49

300 mesh twill weave stainless steel mesh 300 mesh, wire diameter 0.04mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
300	0.04	0.002	0.04	0.002	27.83	0.00	0.24	0.53

325 mesh twill weave stainless steel mesh 325 mesh, wire diameter 0.04-0.035mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
325	0.035	0.001	0.04	0.002	30.49	0.00	0.20	0.44
325	0.04	0.002	0.04	0.002	23.83	0.00	0.26	0.57

350 mesh twill weave stainless steel mesh 350 mesh, wire diameter 0.035mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
350	0.035	0.001	0.037	0.001	26.80	0.00	0.21	0.47

400 mesh twill weave stainless steel mesh 400 mesh, wire diameter 0.03mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
400	0.03	0.001	0.03	0.001	27.83	0.00	0.18	0.40

450 mesh twill weave stainless steel mesh 450 mesh, wire diameter 0.028mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
450	0.028	0.001	0.028	0.001	25.40	0.00	0.18	0.39

500 mesh twill weave stainless steel mesh 500 mesh, wire diameter 0.025mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
500	0.025	0.001	0.03	0.001	25.79	0.00	0.16	0.34

550 mesh twill weave stainless steel mesh 550 mesh, wire diameter 0.02mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
550	0.02	0.001	0.026	0.001	32.14	0.00	0.11	0.24

600 mesh twill weave stainless steel mesh 600 mesh, wire diameter 0.017mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
600	0.017	0.003	0.025	0.0009	42.71	0.00	0.086	0.189

635 mesh twill weave stainless steel mesh 635 mesh, wire diameter 0.015mm

Number of stitches	Wire diameter		Aperture		F	Opening area	Weight per square meter
	mm	inch	mm	inch	%	mm²	kg	pound
635	0.015	0.003	0.025	0.0009	42.71	0.00	0.07	0.154
