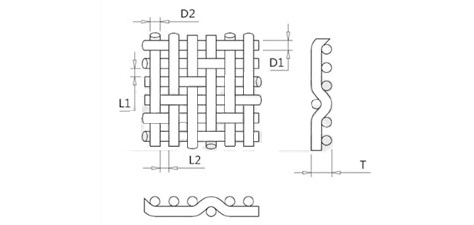

D1 and D2 represent the wire diameter; L1 and L2 represent the mesh; T represents the mesh thickness. The detailed specifications are as follows: | Bamboo pattern woven stainless steel mesh Bamboo pattern weaving has the following characteristics: 1) The warp wire diameter and the weft wire diameter are the same 2) Low hardness and easy to clean 3) Extremely high circulation performance 4) Good ductility and strong workability Bamboo pattern woven stainless steel mesh is suitable for petrochemical industry, chemical fiber, rubber, metallurgy, medicine, food, etc. |
100 mesh 100 mesh bamboo woven stainless steel mesh, wire diameter 0.10-0.12mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
100 | 0.10 | 0.004 | 0.15 | 0.006 | 36.76 | 0.02 | 0.50 | 1.10 |
100 | 0.11 | 0.004 | 0.14 | 0.006 | 32.14 | 0.02 | 0.61 | 1.33 |
100 | 0.12 | 0.005 | 0.13 | 0.005 | 27.83 | 0.02 | 0.72 | 1.58 |
120 mesh 120 mesh bamboo woven stainless steel mesh, wire diameter 0.09-0.10mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
120 | 0.10 | 0.004 | 0.11 | 0.004 | 27.83 | 0.01 | 0.60 | 1.32 |
120 | 0.09 | 0.004 | 0.12 | 0.005 | 33.04 | 0.01 | 0.49 | 1.07 |
150 mesh 150 mesh bamboo woven stainless steel mesh, wire diameter 0.05-0.06mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
150 | 0.05 | 0.002 | 0.12 | 0.005 | 49.66 | 0.01 | 0.19 | 0.41 |
150 | 0.06 | 0.002 | 0.11 | 0.004 | 41.69 | 0.01 | 0.27 | 0.59 |
180 mesh 180 mesh bamboo woven stainless steel mesh, wire diameter 0.05-0.06mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
180 | 0.05 | 0.002 | 0.09 | 0.004 | 41.69 | 0.01 | 0.23 | 0.50 |
180 | 0.06 | 0.002 | 0.08 | 0.003 | 33.04 | 0.01 | 0.32 | 0.71 |
200 mesh 200 mesh bamboo woven stainless steel mesh, wire diameter 0.05-0.06mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
200 | 0.05 | 0.002 | 0.08 | 0.003 | 36.76 | 0.01 | 0.25 | 0.55 |
200 | 0.06 | 0.002 | 0.07 | 0.003 | 27.83 | 0.00 | 0.36 | 0.79 |
250 mesh 250 mesh bamboo woven stainless steel mesh, wire diameter 0.04mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
250 | 0.04 | 0.002 | 0.06 | 0.002 | 36.76 | 0.00 | 0.20 | 0.44 |
300 mesh 300 mesh bamboo woven stainless steel mesh, wire diameter 0.04mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
300 | 0.04 | 0.002 | 0.04 | 0.002 | 27.83 | 0.00 | 0.24 | 0.53 |
325 mesh 325 mesh bamboo woven stainless steel mesh, wire diameter 0.05-0.06mm
Number of stitches | Wire diameter | Aperture | F | Opening area | Weight per square meter | |||
mm | inch | mm | inch | % | mm2 | kg | pound | |
325 | 0.035 | 0.001 | 0.04 | 0.002 | 30.49 | 0.00 | 0.20 | 0.44 |
325 | 0.04 | 0.002 | 0.04 | 0.002 | 23.83 | 0.00 | 0.26 | 0.57 |
