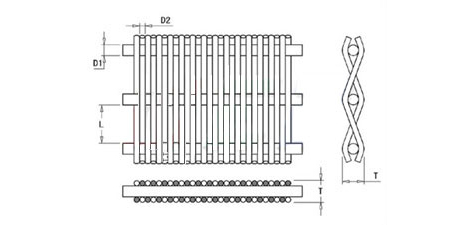

D1, D2 represents the wire diameter; T represents the mesh thickness. The detailed specifications are as follows: | Dense plain weave reverse woven stainless steel mesh The dense plain weave reverse weave has the following characteristics: (1) Reverse weaving, that is, the warp wire diameter is thinner than the weft wire diameter (2) Extremely hard wire mesh (3) High tensile strength and high pulse pressure resistance (4) Highly demanding mechanical conditions (5) Normal precision level, extremely high flow performance, easy to clean, high dirt holding capacity Dense plain weave reverse woven stainless steel mesh is suitable for sediment filtration, vacuum filters, candle filters, etc. |
1005X200-720X150 mesh dense plain weave reverse stainless steel mesh wire diameter 0.025X0.050-0.035X0.100mm
Number of stitches | Wire diameter | mm | filter coefficient | μm | Porosity | Weight per square meter | |
vertical | latitudinal | warp | Weft | abs. | nom. | % | kg |
1005 | 200 | 0.025 | 0.050 | 15-17 | 10 | 0.28 | |
912 | 154 | 0.028 | 0.090 | 18-22 | 13 | 0.49 | |
720 | 150 | 0.035 | 0.112 | 16-20 | 15 | 45 | 0.65 |
720 | 150 | 0.035 | 0.100 | 20-24 | 14 | 45 | 0.60 |
625X134-625X104 mesh dense plain weave reverse stainless steel mesh wire diameter 0.041X0.130-0.042X0.150mm
Number of stitches | Wire diameter | mm | filter coefficient | μm | Porosity | Weight per square meter | |
vertical | latitudinal | warp | Weft | abs. | nom. | % | kg |
625 | 134 | 0.041 | 0.130 | 18-23 | 14 | 0.82 | |
625 | 132 | 0.042 | 0.130 | 20-26 | 17 | 0.83 | |
625 | 106 | 0.042 | 0.140 | 23-28 | 25 | 0.79 | |
625 | 104 | 0.042 | 0.150 | 25-32 | 30 | 0.86 |
290X74-175X40 mesh dense plain weave reverse stainless steel mesh wire diameter 0.09X0.20-0.15X0.35mm
Number of stitches | Wire diameter | mm | filter coefficient | μm | Porosity | Weight per square meter | |
vertical | latitudinal | warp | Weft | abs. | nom. | % | kg |
290 | 74 | 0.090 | 0.200 | 38-45 | 40 | 1.32 | |
290 | 60 | 0.090 | 0.230 | 43-51 | 50 | 1.38 | |
175 | 50 | 0.150 | 0.300 | 62-68 | 60 | 47 | 2.10 |
175 | 45 | 0.150 | 0.320 | 90-102 | 100 | 2.13 | |
175 | 40 | 0.150 | 0.350 | 100-112 | 108 | 2.20 |
130X35-66X18 mesh dense plain weave reverse stainless steel mesh wire diameter 0.20X0.40-0.30X0.40mm
Number of stitches | Wire diameter | mm | filter coefficient | μm | Porosity | Weight per square meter | |
vertical | latitudinal | warp | Weft | abs. | nom. | % | kg |
130 | 35 | 0.200 | 0.400 | 83-90 | 80 | 49 | 2.70 |
130 | 30 | 0.200 | 0.450 | 100-108 | 100 | 2.81 | |
84 | 25 | 0.320 | 0.400 | 150-180 | 150 | 3.15 | |
66 | 18 | 0.300 | 0.400 | 210-230 | 200 | 2.20 |
