Dense Plain Weave

Views: 0 Author: Site Editor Publish Time: 2023-10-30 Origin: Site

1.Dense Plain Weave

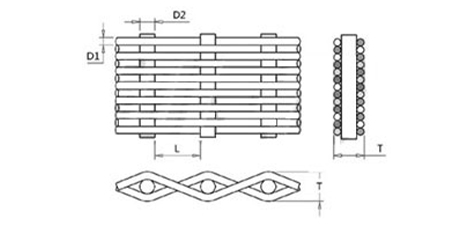

D1 and D2 represent the wire diameter; L1 and L2 represent the mesh; T represents the mesh thickness. The detailed specifications are as follows:

Dense plain weave stainless steel mesh

Dense plain weave has the following characteristics:

（1）"Zero" mesh, the warp wire diameter is larger than the weft wire diameter

（2）Each weft thread is very close to each other

（3）High precision and high fluidity

（4）Compared with square or rectangular mesh, it can filter more solid particles

Dense plain weave stainless steel mesh is the best filter media in hydraulic systems, especially critical applications in space filtration, as well as fuel and combustion chamber filtration, sediment filtration and vacuum filters, etc.

7×40-12×64 mesh dense plain stainless steel mesh diameter 0.9×0.71-0.56×0.40mm

mesh number warp x latitude	Wire diameter mm warp x latitude	Aperture reference value μm	Effective section ratio %	Weight per square meter kg	Network thickness mm
7×40	0.9×0.71	347	14.3	6.45	2.32
7×44	0.71×0.63	319	14.2	5.24	1.97
8×45	0.8×0.60	310	15.5	5.33	2.00
8×85	0.45×0.315	275	27.3	2.51	1.08
8.5×60	0.63×0.45	296	20.3	3.88	1.53
10×76	0.5×0.355	248	21.8	3.02	1.21
10×90	0.45×0.28	249	29.2	2.27	1.01
12×64	0.56×0.40	210	16.0	3.50	1.36

12×86-17×120 mesh dense plain stainless steel mesh diameter 0.45×0.315-0.355×0.224mm

mesh number warp x latitude	Wire diameter mm warp x latitude	Aperture reference value μm	Effective section ratio %	Weight per square meter kg	Network thickness mm
12×86	0.45×0.315	211	20.9	2.74	1.08
12.5×76	0.45×0.355	192	15.9	3.02	1.16
14×76	0.45×0.355	173	14.3	3.10	1.16
14×100	0.40×0.28	182	20.3	2.52	0.96
14×110	0.355×0.25	177	22.2	2.16	0.855
16×100	0.4×0.28	160	17.7	2.60	0.96
16×120	0.28×0.224	145	19.2	1.81	0.728
17×120	0.355×0.224	155	22.4	2.04	0.803

20×110-30×150 mesh dense plain stainless steel mesh diameter 0.355×0.25-0.25×0.18mm

mesh number warp x latitude	Wire diameter mm warp x latitude	Aperture reference value μm	Effective section ratio %	Weight per square meter kg	Network thickness mm
20×110	0.355×0.25	126	15.3	2.34	0.855
20×140	0.315×0.20	133	21.5	1.89	0.715
20×170	0.25×0.16	130	28.9	1.40	0.57
22×120	0.315×0.224	115	15.5	2.05	0.763
25×140	0.28×0.2	100	15.2	1.89	0.68
24×110	0.355×0.25	97	11.3	2.47	0.855
28×150	0.28×0.18	92	15.9	1.76	0.64
30×150	0.25×0.18	82	13.5	1.68	0.61

30×140-50×280 mesh dense plain stainless steel mesh diameter 0.315×0.20-0.16×0.09mm

mesh number warp x latitude	Wire diameter mm warp x latitude	Aperture reference value μm	Effective section ratio %	Weight per square meter kg	Network thickness mm
30×140	0.315×0.20	77	11.4	2.14	0.715
35×190	0.224×0.14	74	16.8	1.37	0.504
35×170	0.224×0.16	69	12.8	1.52	0.544
40×200	0.18×0.135	63	15.4	1.23	0.43
45×250	0.16×0.11	56	15.2	1.04	0.384
50X250	0.14X0.112	53	-	1.03	0.364
50×270	0.14×0.10	50	15.2	0.92	0.34
50×280	0.16×0.09	55	20.0	0.92	0.34

60×270-70×340 mesh dense plain stainless steel mesh diameter 0.14×0.10-0.125×0.08mm

mesh number warp x latitude	Wire diameter mm warp x latitude	Aperture reference value μm	Effective section ratio %	Weight per square meter kg	Network thickness mm
60×270	0.14×0.1	39	11.2	0.97	0.34
60 X300	0.14×0.09	41	14.1	0.90	0.32
60×500	0.14×0.055	51	34.1	0.67	0.252
65×390	0.125×0.071	42	19.1	0.74	0.267
65×750	0.10×0.036	36	37.1	0.40	0.172
70×340	0.125×0.08	35	13.2	0.81	0.285

70×390-80X350 mesh dense plain stainless steel mesh diameter 0.112×0.071-0.10X0.086mm

mesh number warp x latitude	Wire diameter mm warp x latitude	Aperture reference value μm	Effective section ratio %	Weight per square meter kg	Network thickness mm
70×390	0.112×0.071	37	16.3	0.71	0.254
70X350	0.12X0.08	35	-	0.81	0.28
70X400	0.12X0.07	37	-	0.74	0.26
70×930	0.10×0.03	30	36.2	0.38	0.16
77×560	0.14×0.05	38	27.5	0.72	0.24
80X350	0.10X0.086	26	-	0.84	0.272

80X400-100×1200 mesh dense plain stainless steel mesh diameter 0.10X0.07-0.063×0.023mm

mesh number warp x latitude	Wire diameter mm warp x latitude	Aperture reference value μm	Effective section ratio %	Weight per square meter kg	Network thickness mm
80X400	0.10X0.07	40	-	0.69	0.24
80×600	0.1×0.045	37	29.8	0.50	0.19
80×700	0.125×0.04	40	38.1	0.59	0.205
80×430	0.125×0.063	32	16.6	0.74	0.251
100X600	0.10X0.045	27	-	0.55	0.19
100X800	0.10X0.035	31	-	0.50	0.17
100×1200	0.063×0.023	23	37.6	0.25	0.109
