Dense Twill Weave

Views: 0 Author: Site Editor Publish Time: 2023-10-30 Origin: Site

3.dense twill weave

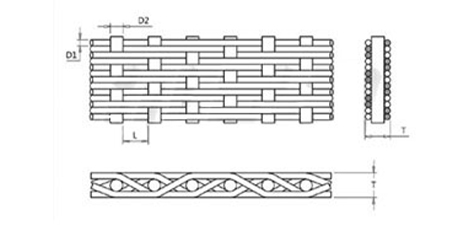

D1 and D2 represent the wire diameter; L1 and L2 represent the mesh; T represents the mesh thickness. The detailed specifications are as follows:

Dense twill weave stainless steel mesh

Dense twill weave has the following characteristics:

(1) "Zero" mesh, opaque fabric

(2) The position of the wire is very tight and has high resistance

(3) Very low absolute accuracy levels (down to 5-6 µm)

(4) Both sides of the screen are smooth

Dense twill woven stainless steel mesh is used in filtration in the pharmaceutical industry, chemical industry, water conservancy system and other industries.

20×270-30×270 mesh dense twill stainless steel mesh wire diameter 0.25×0.20-0.28×0.20mm

mesh number warp x latitude	Wire diameter mm warp x latitud	Aperture reference value μm	Effective section ratio %	Weight in square meters kg	Network thickness mm
20×270	0.25×0.2	119	17.6	3.01	0.65
20×200	0.355×0.28	118	12.1	4.55	0.915
24×300	0.28×0.18	110	19.6	2.90	0.64
20×150	0.45×0.355	101	7.5	5.73	1.16
30×340	0.28×0.16	89	17.9	2.76	0.60
30×270	0.28×0.20	77	11.2	3.28	0.68

40×540-70×600 mesh dense twill stainless steel mesh wire diameter 0.18×0.10-0.14×0.09mm

mesh number warp x latitude	Wire diameter mm warp x latitud	Aperture reference value μm	Effective section ratio %	Weight in square meters kg	Network thickness mm
40×540	0.18×0.10	70	23.5	1.67	0.38
40×430	0.18×0.125	63	15.4	2.00	0.43
50×600	0.125×0.09	51	17.2	1.41	0.305
50×500	0.14×0.11	47	12	1.75	0.364
65×600	0.14×0.09	36	12	1.53	0.32
70×600	0.14×0.09	31	10.1	1.39	0.32

78×760-100×850 mesh dense twill stainless steel mesh wire diameter 0.112×0.071-0.10×0.063mm

mesh number warp x latitude	Wire diameter mm warp x latitud	Aperture reference value μm	Effective section ratio %	Weight in square meters kg	Network thickness mm
78×760	0.112×0.071	31	13.5	1.20	0.254
78×680	0.112×0.08	29	10.3	1.33	0.272
80×680	0.112×0.08	28	9.8	1.33	0.272
90×850	0.10×0.063	26	12.7	1.06	0.226
90×760	0.10×0.071	24	9.6	1.18	0.242
100×760	0.10×0.071	20	7.4	1.20	0.242
100×850	0.10×0.063	22	10	1.09	0.226

130×1100-165×1500 mesh dense twill stainless steel mesh wire diameter 0.071×0.05-0.063×0.036mm

mesh number warp x latitude	Wire diameter mm warp x latitud	Aperture reference value μm	Effective section ratio %	Weight in square meters kg	Network thickness mm
130×1100	0.071×0.05	17	9.4	0.85	0.171
130×1200	0.071×0.045	18	12	0.77	0.161
130×1500	0.063×0.036	21	18.6	0.61	0.135
150×1400	0.063×0.04	15	11.4	0.70	0.143
160×1500	0.063×0.036	15	12.4	0.64	0.135
165×1500	0.063×0.036	14	11.4	0.65	0.135

174×1700-216×1800 mesh dense twill stainless steel mesh wire diameter 0.063×0.032-0.045×0.03mm

mesh number warp x latitude	Wire diameter mm warp x latitud	Aperture reference value μm	Effective section ratio %	Weight in square meters kg	Network thickness mm
174×1700	0.063×0.032	13	12.9	0.60	0.127
165×1400	0.063×0.04	13	8.8	0.721	0.143
174×1400	0.063×0.04	11	7.4	0.73	0.143
203×1500	0.056×0.036	9	6.2	0.64	0.128
203×1600	0.05×0.032	10	9.3	0.53	0.114
216×1800	0.045×0.03	10	9.4	0.51	0.105

250×1600-500×3500 mesh dense twill stainless steel mesh diameter 0.05×0.032-0.025×0.015mm

mesh number warp x latitude	Wire diameter mm warp x latitud	Aperture reference value μm	Effective section ratio %	Weight in square meters kg	Network thickness mm
250×1600	0.05×0.032	5	3.8	0.56	0.114
250×1900	0.04×0.028	8	7.8	0.47	0.096
285×2100	0.036×0.025	7	7.2	0.42	0.086
300×2100	0.036×0.025	6	6.0	0.42	0.086
317×2100	0.036×0.025	5	4.7	0.43	0.086
325×2300	0.036×0.024	4	4.2	0.43	0.084
363×2300	0.032×0.022	4	4.5	0.37	0.076
400×2700	0.028×0.02	4	4.7	0.34	0.068
500×3500	0.025×0.015	3	4.9	0.27	0.055
